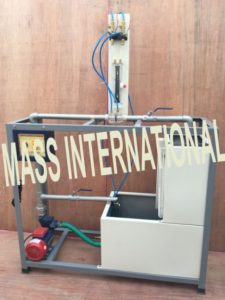

FM 02 G NOZZLE METER APPARATUS



Description



The apparatus consists of a Nozzle meter. The flow can be regulated by the valve provided at the downstream Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.



EXPERIMENTS

  • To measure discharge through Nozzle meter and to calibrate it



FEATURES



  • Acrylic test section
  • Closed loop water circulation
  • Compact & stand alone set up
  • Stainless Steel tanks
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Electric supply 5 kW, 220V AC, Single Phase
  • Water supply Tap water connection

½” BSP Distilled water @ 60 liters (optional)

  • Floor Area with Drain facility



TECHNICAL DETAILS



Product & Code Nozzle Meter Apparatus & FM 02 G
Nozzle meter Nozzle of Stainless Steel, Housing of Clear Acrylic, Compatible to 1″ dia pipe.
Water Circulation FHP capacity make Crompton Greaves / Kirloskar
Flow Measurement Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Sump Tank Capacity 50 Ltrs. MOC SS
Piping MOC GI and PVC
Stop Watch Electronic.
Control Panel On/Off Switches, Mains Indicator, etc.
Overall Dimensions (L x B x H)120 x 42 x 120 cm
