FM 28 FLOW THROUGH FLUIDIZED BED



DESCRIPTION

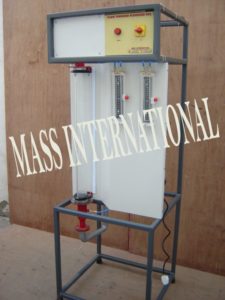

The setup consists of a glass column with fluidizing material i.e. beads/ Sand, S.S. mesh to support the fluidization material. Pressure drop across fluidized bed can be measured by manometer.

The setup is designed to study the fluidization characteristics and relationship between the velocity of the fluid and pressure drop per unit length.

The apparatus is close circuit type provided with fluid flow & measurement arrangement, with necessary pipeline & valves. The setup is fitted on a MS frame painted with good quality paint.



EXPERIMENTS



  • To demonstrate fluidization characteristics
  • To study relationship between velocity of fluid and pressure drop per unit length.



UTILITIES REQUIRED



  • Electric supply Provide 230 +/- 10 VAC, 50 Hz, 1ϕ phase
  • Water supply Tap water connection ½” BSP Distilled water @ 80 liters (optional)



TECHNICAL Specifications



Product FLOW THROUGH FLUIDIZED BED
Product code FM 28 A LIQUID FM 28 B AIR
Column Material Borosilicate Glass OD 55mm, Length 750 mm Approx
Packing Beads / Sand
Pressure Drop Measurement Using Manometer
Fluid Circulation & Measurement FHP Pump With 30 liters Supply Tank & Rotameters FHP Blower

With Orifice meter & Manometer
Piping GI / PVC
Control Panel With required electrical instrumentation
Overall Dimensions
The whole set-up is well designed and arranged in a good quality painted structure.
