TOM 06 B JOURNAL BEARING APPARATUS

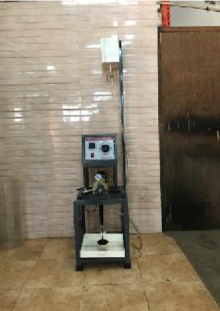

The apparatus consists of a plain steel shaft excavated in a bearing and directly driven by a FHP Motor. The bearing is freely supported on the shaft and sealed at the motor end. The speed of the motor is controlled accurately by the speed control unit and it can be made run in both directions. The journal bearing has compound pressure gauge measure pressure at different point. The bearing can be loaded by attaching weights to the arm supported beneath it.

• • To study the pressure profile of lubricating oil at various conditions of load and speed
• • Plotting the Cartesian polar pressure curves
• • To measure the frictional torque and power transmit

• • Electric supply: 230 V AC, Single Phase.
• • Bench area: 1.5 x 1.5 x 4 m
• • Oil SAE 40 about 5 Ltrs

• • Compact & stand alone set up
• • Superb Painted structure
• • Simple to operate & maintain
