FM-HBA-09 REYNOLD’S APPARATUS (HORIZONTAL)

DESCRIPTION

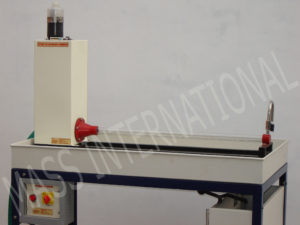

The apparatus consists of a glass tube with one end having bell mouth entrance; connected to a constant headwater tank, at the other end a valve is provided to vary the flow rate. The tank is of sufficient capacity to store water; a capillary tube is introduced centrally in the bell mouth for feeding dye from a small container placed at the top of tank, through PVC tubing. By varying the rate of flow, the Reynold’s number is changed. This also changes the type of flow. Visual observation of dye (Thread) will indicate the type of flow, which can be confirmed from the Reynold’s number computed. The set-up can be connected to Hydraulic Bench with flexible pipeline.


RANGE OF EXPERIMENTS

  • To determine the Reynold’s number and hence the type of flow either laminar or turbulent
  • To study transition zone


FEATURES

  • Clear Acrylic test section
  • Superb Painted structure
  • Simple to operate & maintain


UTILITIES REQUIRED

  • Hydraulic Bench.
  • Water Supply & Drain
  • Electricity 1 kW, 220V AC, Single Phase
  • Floor Area 1.5 x 1.5


TECHNICAL SPECIFICATIONS

Product Reynold’s Apparatus
Tube Material Borosilicate Glass
Dye vessel Material Stainless Steel, Suitable Capacity
Capillary Tube Material Copper/Stainless Steel
Constant Head Water Tank Capacity 20 Ltrs
Flow Measurement Using Measuring Cylinder

The whole setup is well designed and arranged in a good quality painted structure.
