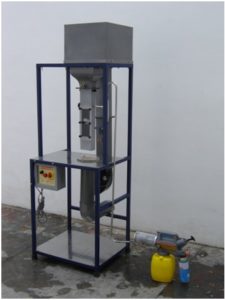

A Working section fits the bench to give flow visualization facilities. Non-toxic smoke, produced in generator (supplied), passes into a rake of tubes that produce smoke filaments which flow through the working section. They show the pattern of flow around obstacles or restrictions. This Apparatus makes a lots of smoke, so you must vent the exhaust to the open air. We provide a flexible duct for this purpose.

EXPERIMENTS WITH THE MODELS SUPPLIED:

Flow around a cylinder, around an aerofoil and through a sharp-edged slit (orifice).
