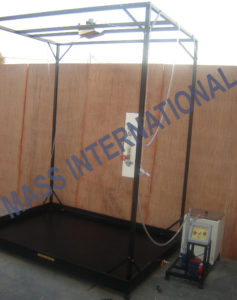

The rainfall simulator consists of a metal frame that supports the spray head assembly. The unit may be placed directly on the ground for field studies or used with its accessory tray for laboratory experiments. In use, water is pumped from the holding tank via a control valve to the spray nozzle. Water from the spray nozzle is interrupted by a horizontal rotating disc driven by a variable speed motor. Adjustable width apertures in the disc allow some water to pass and the remainder is recalculated via the tank. For use in field or laboratory
EXPERIMENT
As a result of using this equipment researchers will be able to:-
Investigate the relationship between rainfall intensity and soil erosion
Investigate the nature of soil erosion potential on different soil types
Investigate the methods by which soil erosion may be prevented
UTILITIES REQUIRED
Cold water supply
Electrical supply:
FEL3-A: 220-240V/1Ph/50Hz
FEL3-B: 120V/1Ph/60Hz
TECHNICAL DETAILS
Product & code
RAINFALL SIMULATOR & AHH-06
Overall Dimensions
Height: 2.7M , Width: 2.7M, Depth: 1.5M
Painted rigid MS structure is provided to support all parts.
