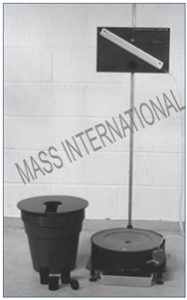

The lysimeter consists of three 300mm diameter containers in which may be placed any soil type and a variety of crop types grown. Each container can then in turn be placed on a hydraulically mounted plate which is used to monitor system weight changes arising from evapotranspiration. Despite its simplicity, the apparatus has a high degree of sensitivity and may be used for student project work as well as for demonstration purposes.
EXPERIMENT
As a result of using this equipment students will be able to:
Use lysimeter apparatus.
Determine plant water usage.
Understand the relationship between reference maximum and actual transpiration.
UTILITIES REQUIRED
Water supply: Connection to a permanent cold water supply
Drain : Suitable laboratory drain required
TECHNICAL DETAILS
Product & code
DEMONSTRATION LYSIMETER & AHH-08
Specification
Lysimeter apparatus comprising: base and inner disc to support soil filled container and plant, resting on a hydraulic sensing device located in the base that is connected to a graduated water column mounted above the lysimeter; complete with spare plant containers, calibration weights, user instructions and manual.
Overall Dimensions
Height: 1.5M , Width: 0.5M, Depth: 0.5M
Painted rigid MS structure is provided to support all parts.
