The Demonstration Infiltration Apparatus provides a simple but effective laboratory demonstration of the infiltration processes, which are fundamental to any form of irrigation.

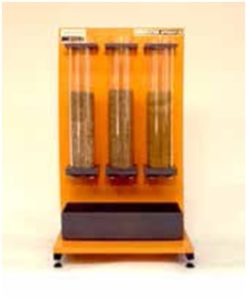

The unit comprises three transparent cylinders in which soil samples are placed. Water poured onto the soil surface can then be observed as it infiltrates the sample.
Each cylinder features a graduated scale so that observations may be quantified. Each cylinder incorporates an air breather and a perforated base plate to facilitate drainage without undue soil loss.
REQUIREMENTS
Cold water supply
INSTRUCTIONAL CAPABILITIES
As a result of using this equipment students will be able to:
Understand the effects of soil texture and structure on infiltration
Understand the effects of existing soil moisture conditions on infiltration
OVERALL DIMENSIONS
Height: 0.90m, Width: 0.50m, Depth: 0.40m
SHIPPING SPECIFICATION
Volume: 0.5m3, gross weight: 70kg
ORDERING SPECIFICATION
Demonstration Infiltration Apparatus comprising:
Three graduated perspex cylinders, resting on a permeable support screen, into which soil samples are placed
