CRE 01 CONTINUOUSLY STIRRED TANK REACTOR (CSTR)

DESCRIPTION

In an ideal CSTR the contents in reactor are well mixed and have uniform composition throughout. Thus the exit stream has the same, composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition.

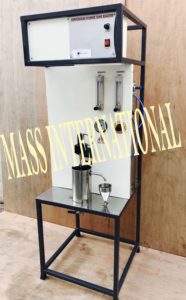

The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. The CSTR is fitted with stirrer for proper mixing. From top outlet of it samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.

EXPERIMENTS

  • Saponification Reactor studies in CSTR
  • To determine the Reaction Rate Constant



FEATURES

  • Continuous operation
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up
  • Soundless Stirrers



UTILITIES REQUIRED

  • Compressed Air supply at 2 Bar, 0.5 CFM
  • Water Supply & Drain
  • Electricity Supply: 1 Phase, 220 V AC, 0.5 kW
  • Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

TECHNICAL DETAILS

Product & Code CONTINUOUSLY STIRRED TANK REACTOR (CSTR) & CRE 01
Reactor Material Stainless Steel, Capacity 2 Ltrs (Approx)
Stirrer Stainless Steel Impeller and shaft coupled with FHP Motor.
Feed Tank (2Nos.) Material Stainless Steel (2 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2)
Flow Measurement Rotameter 2 Nos. (one each for Reactants)
Feed Piping PVC / SS
Stop Watch Electronic
Control Panel On off switch, Mains Indicator etc.
