CRE 03 CASCADE CSTR (CSTR In series)

DESCRIPTION



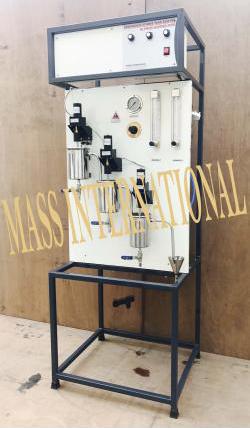

In an ideal CSTR (i.e. an ideal steady state flow reactor) the contents in reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition. . The setup consists of three CSTR arranged in series and two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. Reactants from feed tanks enter in the first CSTR and are passed to second CSTR and so on. For analysis samples are collected from different ports provided. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.

EXPERIMENTS



  • To study the performance of Cascade of three equal volumes CSTR’s in series for the Saponification of a reaction.
  • To draw the performance chart for the reactor system and evaluate the reaction rate constant at ambient condition.



UTILITIES REQUIRED



  • Compressed Air Supply at 2 Bar, 0.5 CFM
  • Water Supply & Drain
  • Electricity Supply: 1Phase, 220V AC, 0.5 kW
  • Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

TECHNICAL DETAILS

Product & Code CASCADE CSTR (CSTR In series) & CRE 03
Reactor (3 Nos) Material Stainless Steel, Capacity 0.7  Ltrs (Approx)
Stirrer (3 Nos) Stainless Steel Impeller and shaft coupled with FHP Motor.
Feed Tank (2Nos.) Material Stainless Steel (2 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2)
Flow Measurement Rotameter 2Nos. (one each for Reactants)
Feed Piping PVC / SS
Stop Watch Electronic
Control Panel On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
