CRE 10
PACKED BED REACTOR

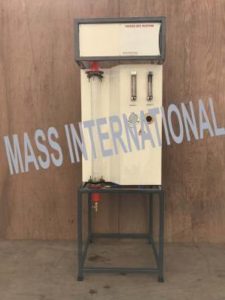

The setup consists of a glass column packed with Rasching Rings and two feed tanks. Reactants are fed to the reactor through liquid distributor, fitted at the bottom of the column. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. Samples can be taken periodically from the top outlet of reactor. Pressure Regulator & Pressure Gauge are fitted in the compressed air line.
EXPERIMENTS
- Saponification Reaction studies in Packed Bed Reactor
- To determine the Reaction Rate Constant
UTILITIES REQUIRED
- Compressed Air Supply at 2 Bar, 0.5 CFM
- Water Supply & Drain
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted
| Product & Code |
Packed Bed Reactor & CRE 10 |
| Reactor Column |
Material Borosilicate Glass , Volume 2 Ltrs. (approx) |
| Packing |
Rasching Rings, Material Borosilicate Glass Size 8-10 mm (approx) |
| Feed Tank (2Nos.) |
Material Stainless Steel (2 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc. |
| Feed Circulation |
By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2) |
| Flow Measurement |
Rotameter 2Nos. (one each for Reactants) |
| Feed Piping |
PVC / SS |
| Stop Watch |
Electronic. |
| The setup is painted with good quality paints & mounted on a strong support. |
