CRE 12 RTD STUDIES IN CONTINUOUSLY STIRRED TANK REACTOR

DESCRIPTION



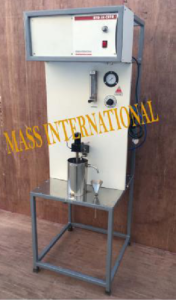

Real reactors do not satisfy the idealized flow patterns, back mix flow or plug flow deviation from ideality can be due to channeling of fluid through the vessel, recycling of fluid within the vessel or due to the presence of stagnant region or pockets of fluid in the vessel. To predict the exact behavior of a vessel as a Chemicals reactor, RTD Of stimulus response technique is used. The setup consists of one feed tank through which water is fed to the reactor. The flow rate can be adjusted by operating the needle valve and measured by Rotameter. The compressed air is used for circulation of feed. The continuously stirred tank reactor made of Stainless Steel is provided for understanding the R.T.D. characteristics. A syringe is used for dozing the tracer in the C.S.T.R. Pressure Regulator & Pressure Gauge are fitted in the compressed air line.

EXPERIMENTS



  • To plot RTD curve for a CSTR Using pulse tracer
  • To determine the Dispersion No



UTILITIES REQUIRED



  • Compressed Air Supply at 2 Bar, 0.25 CFM
  • Water Supply & Drain
  • Electricity Supply: 1 Phase, 220 V AC, 0.5 kW
  • Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

TECHNICAL DETAILS

Product & Code Rtd Studies In Continuously Stirred Tank Reactor & CRE 12
Reactor Material Stainless Steel, Capacity 2 Ltrs (Approx)
Stirrer Stainless Steel Impeller and shaft coupled with FHP Motor.
Feed Tank Material Stainless Steel, Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2)
Flow Measurement Rotameter
Feed Piping PVC / SS
Stop Watch Electronic
Control Panel On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
