CRE 14 RTD STUDIES IN PACKED BED REACTOR

DESCRIPTION



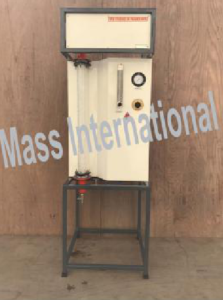

The setup consists of a glass column packed with Rasching Rings. Liquid is fed to the reactor through liquid distributor, fitted at the bottom of the column. Rotameter is provided to measure the flow. The flow rate can be adjusted by operating the needle valve provided on Rotameter. For understanding the R.T.D. characteristics, a special arrangement to inject tracer into the lower end of reactor (for liquid and gas both) is provided. Samples can be taken periodically from the top outlet of reactor. Pressure Regulator & Pressure Gauge are fitted in the compressed air line

EXPERIMENTS



  • To plot RTD curve for Packed Bed Reactor
  • To determine the Dispersion No



UTILITIES REQUIRED



  • Compressed Air Supply at 2 Bar, 0.25CFM.
  • Water Supply & Drain.
  • Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.

TECHNICAL DETAILS

Product & Code RTD Studies In Packed Bed Reactor & CRE 14
Reactor Column Material Borosilicate Glass
Packing Rasching Rings, Material Borosilicate Glass
Liquid Distributor Material Stainless Steel, Conical Shaped, Facilitating the entry of gaseous reactants and injection of tracer elements.
Feed Tank Material Stainless Steel, Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2)
Flow Measurement Rotameter
Feed Piping PVC / SS
Control Panel On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
