CRE 17 HYDRODYNAMICS OF TRICKLE BED REACTOR

DESCRIPTION

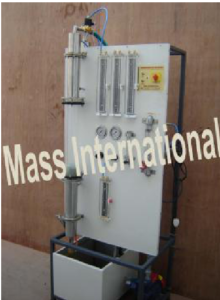

Tile set-up consists of a glass column. Arrangement is made for changing the glass column conveniently and filling it with any type of packing required. Air from a regulated pressure vessel passes through a sparger and allowed to enter in the column at the top. Liquid is feed from a tank, fitted with a pump and is distributed at the top of a column using a spray nozzle. Set -up is fully accompanied with manometers required. Solenoid valves are provided in the feed line at the top of column for instant release and close. The flow rate can be adjusted by operating the valves provided in respective line

EXPERIMENTS



  • To determine Hydrodynamics of a Trickle Bed Reactor involving the measurement of pressure drop, hold-up & flow regime.



UTILITIES REQUIRED



  • Compressed air at 4 Bar
  • Water supply and drain
  • Electricity-0.5kw, Single

TECHNICAL DETAILS

Product & Code HYDRODYNAMICS OF TRICKLE BED REACTOR & CRE 17
Packed Bed Material Borosilicate Glass

Dia. 80 mm, Height 600mm
Packing Glass Beads Dia. 3mm/Rasching Rings, size 8-10 mm
Flow measurement Rotameter one each for water and air
Liquid Feed Tank Material Stainless Steel Capacity 60 Ltrs
Feed Circulation Centrifugal Pump capacity 1,4HP Crompton/Sharp make
Air Tank Compatible Capacity
Pressure Regulator (2 Nos.) 1. Operating range 0-2 kg/cm2 and 0-10 Kg/cm2
Pressure Gauge Bourdon Type
Mixing Chamber Material Stainless Steel of Compatible Capacity for Air & Water
Liquid Catch Pot Material Stainless Steel of Compatible Capacity
Solenoid Valve 2 Nos. (One each at Liquid and air inlet)
Manometers Compatible capacity
Piping Material Stainless Steel and PVC ½” Line size
Control Valves Material Gun Metal Brass
Control panel On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
