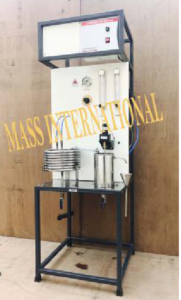

CRE 21 COMBINED FLOW REACTOR (CSTR+PFR)

DESCRIPTION



In a Combined Flow Reactor, the contents are passed through two types of Reactors PFR and CSTR, connected in series. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition.



The set up consists of two feed tanks through which two reactants are fed to the reactors. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.



The Reactants enter at lower end of helical coil tube type reactor coming out of the top of coil again entering to the CSTR which is fitted with stirrer for proper mixing. Arrangement is made for sampling from both the reactors. From top outlet of PFR and CSTR samples are collected for analysis

EXPERIMENTS



  • Saponification Reactor studies in CSTR/PFR/Combined Reactor.
  • To determine the Reaction Rate Constant



UTILITIES REQUIRED



  • Compressed Air supply at 2 Bar, 0.5 CFM
  • Water Supply & Drain
  • Electricity Supply: 1 Phase, 220 V AC, 0.5 kW

Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

TECHNICAL DETAILS

Product & Code COMBINED FLOW REACTOR (CSTR+PFR) & CRE 21
Coil Reactor Stainless steel, capacity: 0.7 liters (helical coiled tube type)
CSTR Stainless steel, capacity: 2 liters
Stirrer Stainless Steel Impeller and shaft coupled with FHP Motor.
Feed Tank (2Nos.) Material Stainless Steel (2 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2)
Flow Measurement Rotameter 2Nos. (one each for Reactants)
Feed Piping PVC / SS
Stop Watch Electronic
Control Panel On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
