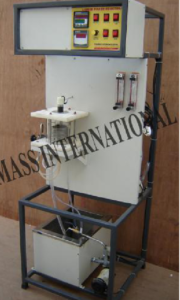

CRE 22 LIQUID PHASE CHEMICAL REACTOR

DESCRIPTION



The set -up consists of a reactor vessel fitted with variable speed agitator and detachable baffles. This unit is designed to study chemical kinetics. Reactants are fed to the reactor, using pump and flow is regulated and monitored by individual Rotameter. An adjustable overflow device is provided in the reactor to conduct the experiment in different reactor volume.



A stainless steel coil is immersed in the reactor through which the hot water supply is circulated. Temperature of the hot water is controlled by means of Temperature Controller and it enables the students to enhance the experimentation capabilities.

EXPERIMENTS



  • To study the chemical kinetics
  • To study the effect of residence time.
  • To study the effect of mixing speed.
  • To study the effect of temperature on chemical reaction



UTILITIES REQUIRED



  • Water Supply & Drain
  • Electricity Supply: 230 V AC, 50 Hz, 1 Phase, 15 Amps power Socket.
  • Table for set-up support.
  • Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted.

TECHNICAL SPECIFICATION

Product & Code LIQUID PHASE CHEMICAL REACTOR & CRE 22
Reactor Material              : Acrylic/SS/Glass

Capacity             : Adjustable from 1-2 Ltrs.
Agitator    Variable speed with speed control facility

From 0-150 RPM
Impeller  4 Square bladed (1 No.)

Material              : Stainless Steel
Baffles  Detachable.
Piping  PVC.
Feed Tank

 (2 Nos.)

Material              : Acrylic/Stainless Steel/PVC

Capacity             : 20 Ltrs. Each
Discharge Tank (1 No.) Material              : PVC

Capacity             : 40 Ltrs.
Water Bath                            Material Stainless Steel 304 Grade, Double wall, insulated with Ceramic wool.
Heater Nichrome wire Heater
Pumps (3 Nos.)                      2 Nos. for Chemical, 1 No. For hot water circulation.
Control Panel Digital Temp. Controller : 0-2000C , RTD PT -100 type (For Water Bath)

With standard make on/off switch, Mains Indicator etc.

Whole assembly should be fixed on a base plate, which can be installed on service unit.
All the necessary items required for functioning of equipment are to be quoted and supplied
