DESCRIPTION

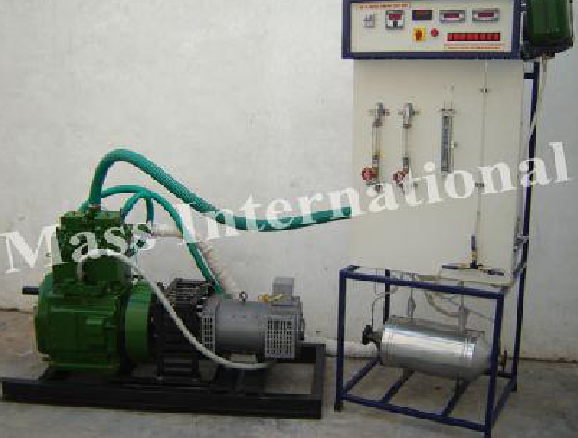

The setup consists of double cylinder, four stroke, Diesel engine connected to rope brake type dynamo meter for variable loading. The setup has standalone type independent panel box consisting of air box, fuel tank, manometer, fuel measuring unit. Engine jacket cooling water inlet, outlet and exhaust gas temperature is displayed on temperature indicator. Flow meter is provided for cooling water flow measurement.



RANGE OF EXPERIMENTS

  • Study of engine performance for power, efficiencies, fuel consumption, air fuel ratio and heat balance



UTILITIES REQUIRED

  • Electric supply Provide 230 +/- 10 VAC, 50 Hz, single phase
  • Space: 3800Lx2500Wx1700H in mm
  • Water supply Continuous clean and soft water supply @1000 LPH, at minimum head of 20 m. is needed. Provide tap with 1/2” BSP size connection.
  • Exhaust line Provide exhaust pipe 32 NB (1.25″) size with suitable
  • Drain Provide drainpipe 1.5” BSP size with suitable length.
  • Fuel, oil Diesel: @ 10 liter. Lubricating oil: @ 5 liter (20W40)

TECHNICAL SPECIFICATIONS

Product & Code Engine test setup 1 cylinder, 4 stroke, diesel & ED 01
Engine Type Single cylinder, 4 stroke Diesel, water cooled, power 5 HP at 1500 rpm, stroke 110 mm, bore 80.0 mm. compression ratio 16.5:1, capacity 553 cc. (approx)
Dynamometer Type Rope with set of weights (Model ED 01 R) Type Electrical with loading device (Model ED 01 E) Type Hydraulic with loading device (Model ED 01 H) Type Eddy current with loading device (Model ED 01ED)
Propeller shaft With universal joint
Air box M S fabricated with orifice meter
Air Flow Manometer, Range 100-0-100mm
Fuel Flow Fuel measuring unit, Range 0-250ml
Flow Meter 2 No. for Engine cooling and Calorimeter
Fuel tank Capacity 8 lit
Calorimeter (optional) Type Pipe in pipe MOC Stainless Steel insulated with ceramic wool & cladded by aluminum foil of best quality with Digital temp. indicator & sensor
Temperature Sensor Digital PT – 100 Type with digital temp.
Speed indicator indicator Digital with proximity sensor

The whole setup is well designed and arranged in a good quality painted structure.
