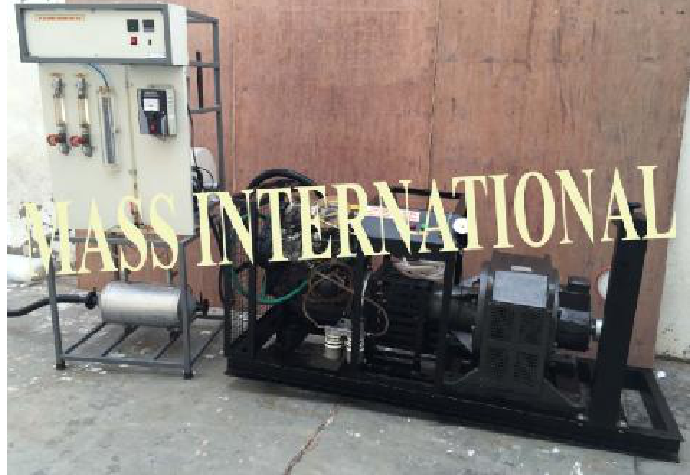

The setup consists of four cylinders, four stroke, Diesel engine connected to dynamometer for engine loading. The setup has stand-alone type independent panel box consisting of air box, fuel tank, manometer, fuel measuring unit. Engine jacket cooling water inlet, outlet and calorimeter temperature is displayed on temperature indicator. Flowmeters are provided for cooling water and calorimeter flow measurement.



RANGE OF EXPERIMENTS



  • Study of engine performance for power, efficiencies, fuel consumption, air fuel ratio and heat balance



UTILITIES REQUIRED

  • Electric supply Provide 230 +/- 10 VAC, 50 Hz, single phase
  • Water supply Continuous, clean and soft water supply @ 4000 LPH, at 10 m. head. Provide tap with 1” BSP size connection
  • Drain Provide suitable drain arrangement (Drain pipe 65 NB/2.5” size)
  • Exhaust Provide suitable exhaust arrangement (Exhaust pipe 32 NB/1.25” size)
  • Fuel, oil Diesel @ 10 liter, Oil @ 3.5 lit. (15W40)

TECHNICAL SPECIFICATIONS

Product & Code Engine test setup 4 cylinder,4 stroke, Diesel & ED 03
Engine Refurbished Engine (New Engine – Optional at extra cost) Make Telco, Model Tata Indica, Type 4 Cylinder, 4 Stroke, Diesel water cooled, stroke 79.5mm, bore 75mm, 1405 cc (approx)
Dynamometer Type Rope with set of weights (Model ED 03 R) Type Electrical with loading device (Model ED 03 E) Type Hydraulic with loading device (Model ED 03 H) Type Eddy current with loading device (Model ED 03 ED)
Propeller shaft With universal joint
Air box M S fabricated with orifice meter
Fuel tank Capacity 8 lit
Calorimeter (Optional) Type Pipe in pipe
Temperature sensor Digital
Speed indicator Digital PT – 100 type
Water Flowmeter Engine cooling and Calorimeter
Space 3500Lx4000Wx2000H in mm

The whole setup is well designed and arranged in a good quality painted structure.
