EP 02 COMP ENGINE TEST SETUP SINGLE CYLINDER FOUR STROKE, PETROL

(COMPUTERIZED) DESCRIPTION

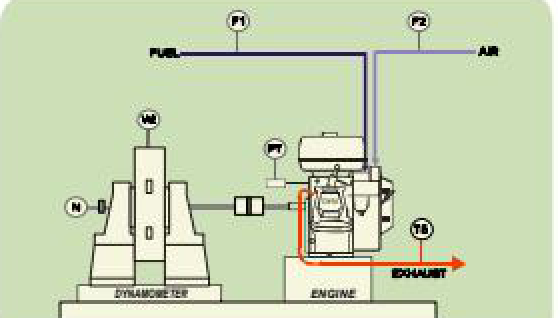

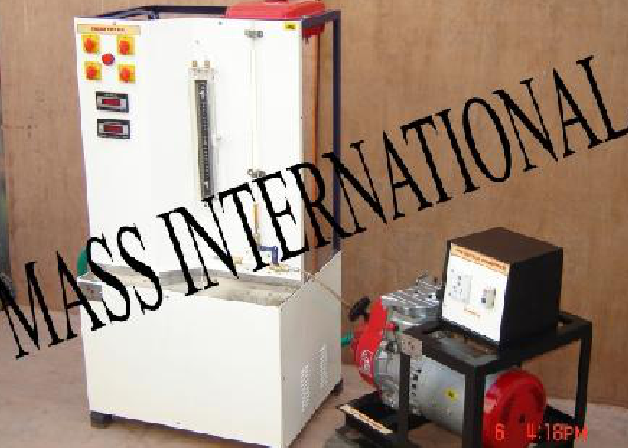

The setup consists of single cylinder, four stroke, Petrol engine connected to eddy current type dynamometer for loading. It is provided with necessary instruments for combustion pressure and crank‐angle measurements. These signals are interfaced to computer through engine indicator for Pθ−PV diagrams.  Provision is also made for interfacing airflow, fuel flow, exhaust temperature and load measurement. The set up has stand‐alone panel box consisting of air box, fuel tank, manometer, fuel measuring unit, transmitters for air and fuel flow measurements, temperature indicator and load indicator.

The setup enables study of engine performance for brake power, indicated power, frictional power, BMEP, IMEP, brake thermal efficiency, indicated thermal efficiency, Mechanical efficiency, volumetric efficiency, specific fuel consumption, A/F ratio and heat balance. Labview based Engine Performance Analysis software package “Vishleshan” is provided for on line performance evaluation.



FEATURES

  • Online measurements and performance analysis
  • PΘ‐PV plots, performance plots and tabulated results
  • Data logging, editing, printing and export
  • Configurable graphs
  • IP, IMEP, FP indication

Combustion analysis

EXPERIMENTS

  • Study of engine performance (Manual mode)
  • Study of engine performance (Computerised mode)
  • Study of pressure volume plot and indicated power

UTILITIES REQUIRED

  • Electric supply: Provide 230 +/- 10 VAC, 50 Hz, single phase
  • Computer: With standard configuration
  • Water supply: Continuous clean and soft water supply @100 LPH, at minimum head of 10 m. Is Provide tap with 1” BSP size connection.



SOFTWARE

“Vishleshan” is a Labview based powerful engine analysis software developed by Mass International for engine performance monitoring system. “Vishleshan” can fulfill most of the engine testing application needs including monitoring, reporting, data entry, data logging. The software evaluates power, efficiencies, fuel consumption and heat release. It is configurable as per engine set up. Various graphs are obtained at different operating condition. While on line testing of the engine in RUN mode necessary signals are scanned, stored and presented in graph. Stored data file is accessed to view the data graphical and tabular



formats. The results and graphs can be printed. The data in excel format can be used for further analysis.

TECHNICAL SPECIFICATIONS

Product & Code Engine test setup 1 cylinder, 4 stroke, Petrol (Computerized)
Code & Engine Engine, Make Honda, Model Honda GX200D QX, Type Single cylinder, 4 stroke Petrol, Air cooled, 4.1 KW at 3600 rpm, stroke 54 mm, bore 68 mm. Capacity 196 cc
Dynamometer Eddy current Type, water cooled
Propeller shaft With universal joint
Air box M S fabricated with orifice meter
Piezo Sensor Range 5000 PSI, with low noise cable
Crank Angle Sensor Resolution 1 Deg, Speed 5500 RPM with TDC pulse.
Data acquisition device Advantech/NI USB-6210, 16-bit, 250kS/s.
Fuel tank Capacity 15 lit with glass fuel metering column
Piezo powering unit Model AX 409
Temperature Sensor Type Thermocouple, Type K
Temperature Transmitter Type two wire, Input Thermocouple, Range 0–1200 Deg C, Output 4–20 mA
Digital voltmeter Digital, Range 0 20 VDC
Load indicator Digital, Range 0 50 Kg, Supply 230VAC
Load sensor Load cell, type strain gauge, range 0-50 kg
Fuel Flow Transmitter DP transmitter, Range 0-500 mm WC
Air Flow transmitter Pressure transmitter, Range (-) 250 mm WC
Software “Vishleshan” Engine performance analysis software
Overall Dimensions W 2000 x D 2500 x H 1500 mm

The whole setup is well designed and arranged in a good quality painted structure.
