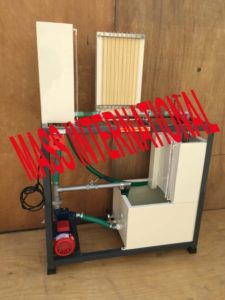

FM 01 BERNOULLI'S THEOREM APPARATUS



Description



The setup is designed to verify Bernoulli’s Theorem experimentally

The apparatus consists of a one piece clear acrylic test section with convergent and divergent part sections. The test section is connected to Piezometer Tubes through pressure tapping at different locations on the section to demonstrate the Bernoulli’s Theorem.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.





EXPERIMENTS



  • To verify Bernoulli’s Theorem experimentally



FEATURES



  • Acrylic test section
  • Closed loop water circulation
  • Compact & stand alone set up
  • Stainless Steel tanks
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Electric supply5 kW, 220V AC, Single Phase
  • Water supply Tap water connection ½” BSP
  • Distilled water @ 60 liters (optional)
  • Floor Area with Drain facility





TECHNICAL DETAILS



Product & Code BERNOULLI’S THEOREM APPARATUS & FM 01
Test Section Material Acrylic, Size 1² dia
Inlet Tank Capacity 30 Ltrs. MOC SS
Supply Tank Capacity 50 Ltrs. MOC SS
Measuring Tank Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Piezometer Tubes Material P.U. Tubes (9 Nos.)
Pump FHP capacity make Crompton Greaves/Kirloskar
Piping MOC GI and PVC
Stop Watch Electronic
Overall Dimensions (L x B x H) 120 x 42 x 170 cm
