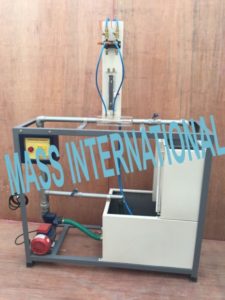

FM 02 A VENTURIMETER APPARATUS



Description



The apparatus consists of a pipeline containing a Venturimeter. The pressure tapings from the Venturimeter to differential manometer to measure pressure difference. By operating the valves provided at the downstream the flow can be regulated.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.





EXPERIMENTS



  • To determine the co-efficient of discharged through Venturimeter.
  • To measure discharge through Venturimeter as flow meters.



FEATURES



  • Acrylic test section
  • Closed loop water circulation
  • Compact & stand alone set up
  • Stainless Steel tanks
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Electric supply5 kW, 220V AC, Single Phase
  • Water supply Tap water connection ½” BSP Distilled water @ 60 liters (optional)
  • Floor Area with Drain facility





TECHNICAL DETAILS



Product & Code Venturimeter Apparatus & FM 02 A
Venturimeter Material Clear Acrylic compatible to 1″ Dia. Pipe
Water Circulation FHP capacity make Crompton Greaves/Kirloskar
Flow Measurement Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Sump Tank Capacity 50 Ltrs. MOC SS
Piping MOC GI and PVC
Stop Watch Electronic
Control Panel On/Off Switch, Mains Indicator, etc
Overall Dimension (L x B x H) 120 x 42 x 120 cm
