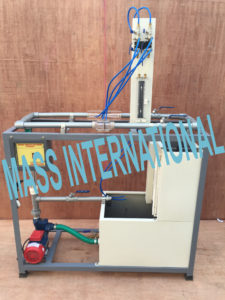

FM 02 C VENTURIMETER, ORIFICEMETER & ROTAMETER APPARATUS



Description



The apparatus consists of two pipelines emerging out from a common manifold. One pipeline contain a Venturimeter, second contains an Orifice and the common manifold pipeline contains a Rotameter. The pressure tapings from the Venturimeter and Orificemeter are taken to differential manometer to measure pressure difference. The Venturimeter & Orificemeter are connected in parallel and anyone of them can be put in operation by operating valves provided at the downstream. These valves can also regulate the flow.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.



EXPERIMENTS



  • To determine the co-efficient of discharged through Venturimeter and orifice meter.
  • To measure discharge through Venturimeter, Orificemeter and Rotameter
  • To calibrate the Rotameter.



FEATURES



  • Acrylic test section
  • Closed loop water circulation
  • Compact & stand alone set up
  • Stainless Steel tanks
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Water Supply & Drain
  • Electricity 5 kW, 220V AC, Single Phase
  • Floor Area5 x 0.75 m



TECHNICAL DETAILS



Product & Code Venturimeter, Orificemeter & Rotameter Apparatus and FM 02 C
Venturimeter Material Clear Acrylic compatible to 1″Dia. Pipe
Orificemeter Material Clear Acrylic/ Brass/SS Plate compatible to 1″ Dia. Pipe.
Rotameter Range 30 LPM MOC Clear Acrylic
Water Circulation FHP capacity make Crompton Greaves / Kirloskar
Flow Measurement Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Sump Tank Capacity 50 Ltrs. MOC SS
Piping MOC GI and PVC
Stop Watch Electronic
Control Panel On/Off Switch, Mains Indicator, etc.
Overall Dimensions (L x B x H) 120 x 42 x 120 cm
