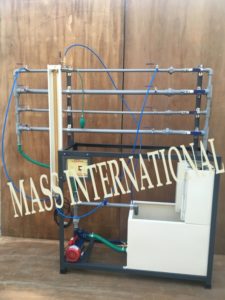

FM 04 FRICTION IN PIPE LINES APPARATUS



Description



The setup is designed to study the losses due to friction in pipes of different diameter and different material.

Set up consists of a set of 3 different pipe test sections, supply tank, measuring tank and pump for closed loop water circulation. A number of valves are provided to conduct the experiment with only one test section without any hassle. The test sections are connected to differential manometer through Piezometer and gang box.

The flow rate of water is measured using measuring tank and stop watch provided.



EXPERIMENTS



  • To determine the losses due to fiction in pipes



FEATURES



  • Choice of Test Section
  • Closed loop water circulation
  • Compact & stand alone set up
  • Stainless Steel tanks and wetted parts
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Electric supply5 kW, 220V AC, Single Phase
  • Water supply Tap water connection

½” BSP Distilled water @ 90 liters (Optional)

  • Floor Area with Drain facility



TECHNICAL DETAILS



Product & Code Friction in Pipe lines apparatus & FM 04
Pipe Test Section



 A set of total 3 pipes (Length 1 m) is provided out of:

Material GI of Size Diameter ½” , 3/4”, 1” & 1 ¼ ”

Material SS of Size Diameter ½”
Supply Tank Capacity 50 Ltrs. MOC SS
Measuring tank Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Pump FHP capacity make Crompton Greaves / Kirloskar
Piping MOC GI and PVC
Stop Watch Electronic
Overall Dimensions (L x B x H) 170 x 42 x 170 cm
