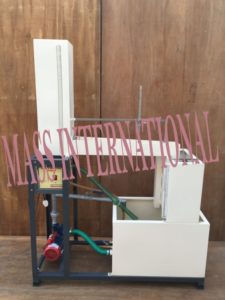

The setup is designed to study the discharge through different orifice & mouthpiece.
Set up consists of an adjustable head constant level tank, supply tank, measuring tank and pump for closed loop water circulation. The constant level tank is fitted with arrangement for creating jet using different interchangeable orifice and mouthpiece. A hook/pointer gauge for measuring x-y coordinates of jet is also fitted.
The flow rate of water is measured using measuring tank and stop watch provided.
EXPERIMENTS
To determine the co-efficient of discharge of different Orifice and mouthpiece
FEATURES
Acrylic test section
Closed loop water circulation
Compact & stand alone set up
Stainless Steel tanks and wetted parts
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electric supply5 kW, 220V AC, Single Phase
Water supply Tap water connection
½” BSP Distilled water @ 60 liters (optional)
Floor Area with Drain facility
TECHNICAL DETAILS:
Product & Code
Orifice & Mouthpiece Apparatus and FM 08
Orifice
Set of 2, Material Acrylic (Diameter 10mm and 15 mm)
Set of Mouthpieces
Set of 3, Material Acrylic (Diameter 10mm with L/D = 1, 2.5 & 4 )
Constant level tank
Capacity 25 Ltrs. MOC SS
Supply Tank
Capacity 50 Ltrs. MOC SS
Measuring tank
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
