FM 29 FLOW THROUGH PACKED BED



DESCRIPTION



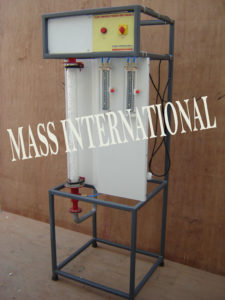

The set-up consists of a glass column packed with packing material i.e. Rasching rings, SS mesh to support the packing and with calming section. Pressure drop across packed bed can be measured by manometer. The set-up studies in packed bed characteristics and relationship between the velocity of the fluid and pressure drop per unit length. The apparatus is close circuit type provided with tank, FHP pump, necessary piping and valves and Rotameter to measure the flow rate of fluid. The set-up is fitted on a MS frame and painted with good quality paint.





EXPERIMENTS



  • To study packed bed characteristics.
  • To study relationship between velocity of fluid and pressure drop per unit length.



UTILITIES REQUIRED



  • Electric supply Provide 230 +/- 10 VAC, 50 Hz, single phase
  • Water supply Tap water connection ½” BSP , Distilled water @ 80 liters (optional)





TECHNICAL Specifications



Product PRESSURE DROP THROUGH PACKED BED
Product code FM 29 A LIQUID FM 29 B AIR
Column Material Borosilicate Glass OD 55mm, Length 750 mm Approx
Packing Material Borosilicate Glass Rasching rings
Pressure Drop Measurement Using Manometer
Fluid Circulation & Measurement FHP Pump With 30 liters Supply Tank & Rotameters FHP Blower With Orifice meter & Manometer
Piping GI / PVC
Control Panel With required electrical instrumentation
Overall Dimensions
The whole set-up is well designed and arranged in a good quality painted structure.
