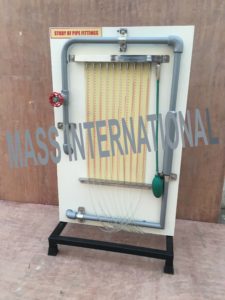

The set up consists of a 1/2 bend and elbow, a sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individul9al fittings. The set-up can be connected to Hydraulic Bench by flexible pipeline.

Range of EXPERIMENTS

• To determine loss of head in the fittings at various water flow rates.
• To determine the loss co-efficient for the pipefittings.
• Comparing the Pressure drop across each device.

Features

• Clear Acrylic test section
• Superb Painted structure
• Simple to operate & maintain

UTILITIES REQUIRED

• Hydraulic Bench.
• Water Supply & Drain
• Electricity 1 kW, 220V AC, Single Phase
• Floor Area 1.5 x 1.5

TECHNICAL specifications
