The setup consists of 3 pipes of different material, which are connected in parallel. Pressure tapings are provided on each pipe to measure the pressure losses with the help of a Differential Manometer. Control valves are fitted on each pipe, which enables to use one pipe at a time for experiment. The set-up can be connected to Hydraulic. Bench by flexible pipeline
Range of EXPERIMENTS
To determine the losses due to friction in pipes
To determine the friction factor for Darcy-weir back equation
Features
Clear Acrylic test section
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Hydraulic Bench.
Water Supply & Drain
Electricity 1 kW, 220V AC, Single Phase
Floor Area 1.5 x 1.5
TECHNICAL specifications
Product

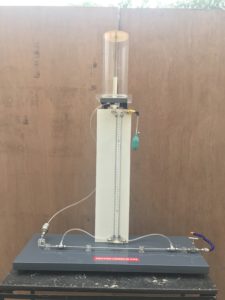

Friction Loss In A Pipe
Pipes (3 Nos.)
Material GI / SS / PVC
Pipe Test Section
Length 600 mm
The whole set-up is well designed and arranged in a good quality painted structure
