FM-HBA-06 FLOW OVER NOTCH/WEIRS

Description

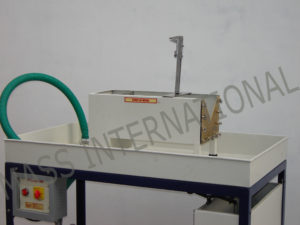

The lab setup consists of a channel with deepened entry section having sufficient length and width in which water is supplied from the bottom Required Notch is fitted at one end of this channel. Upstream from the face Notch, a gauge well is provided where a hook gauge is filled Arrangement for fixing interchangeable notches is made. Set of 3 brass notches, i.e. rectangular notch, 60 V notch & 45 V notch is provided along with the set-up. The set-up can be connected to Hydraulic Bench with flexible pipeline.





Range of EXPERIMENTS



To determine co-efficient of discharge (cd) through: –

  • V notch (600 & 450)
  • Rectangular Notch



Features



  • Clear Acrylic test section
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Hydraulic Bench.
  • Water Supply & Drain
  • Electricity 1 kW, 220V AC, 1 Phase
  • Floor Area 1.5 x 1.5





TECHNICAL specifications



Product FLOW OVER NOTCH/WEIRS
Channel Test Section      600 x 250 x 180 mm made of stainless steel
Notches Material Brass (3 Nos.)

1. Rectangular Notch

2. 45° V Notch

3. 60° V Notch
Hook/Pointer Gauge With Vernier scale
The whole set-up is well designed and arranged in a good quality painted structure
