FM-HBA-07 ORIFICE & MOUTHPIECE



Description



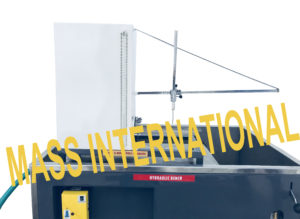

It consists of a tank provided with inlet supply diffuser, overflow outlet. Provision for fitting Orifice or Mouthpiece at the same position is provided. An arrangement is done to vary head and keep it constant at desired level. The set-up can be connected to Hydraulic Bench by flexible pipe line.





Range of EXPERIMENTS



  • To determine the co-efficient of discharge of different orifice and Mouthpiece



Features



  • Clear Acrylic test section
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Hydraulic Bench.
  • Water Supply & Drain
  • Electricity 1 kW, 220V AC, Single Phase
  • Floor Area 1.5 x 1.5





TECHNICAL specifications



Product ORIFICE & MOUTHPIECE
Set Of Orifices Material Acrylic (2 Nos.)

Dia. 10 mm and 15mm
Set Of Mouthpieces Material Acrylic (3 Nos.)

Dia 10mm(L/D =2.5)

Dia 10mm (L/D=4)

Dia 10mm (L/D= I)
The whole set-up is well designed and arranged in a good quality painted structure.
