FM-HBA-11 STUDY OF PRESSURE MEASUREMENT

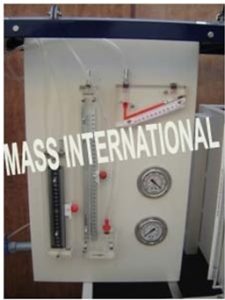

DESCRIPTION



The set-up consists of different pressure measurement devices fitted in a pipe line, in which an Orifice is fitted to create the pressure difference. The student scan has good insight-of the devices. The set-up can be connected to Hydraulic Bench with flexible pipeline.





Range of EXPERIMENTS

  • To demonstrate the working of different pressure measuring devices
  • To measure the pressure practically by different pressure measuring devices



Features



  • Clear Acrylic test section
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED



  • Hydraulic Bench.
  • Water Supply & Drain
  • Electricity 1 kW, 220V AC, Single Phase
  • Floor Area 1.5 x 1.5





TECHNICAL specifications



Single Well Manometer Single Tube Type
Differential Manometer U Tube Type
Sensitive Manometer                Inclined Tube Type
Pressure Gauge                        Bourdon Type
Vacuum Gauge                         Bourdon Type
The whole set-up is well designed and arranged in a good quality painted structure.
