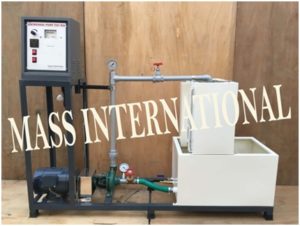

The setup is designed to study the performance of centrifugal pump.
Set up consists of a centrifugal pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement.
The flow rate of water is measured using measuring tank and stop watch provided.
EXPERIMENTS
To determine overall efficiency and pump efficiency of the centrifugal pump.
To plot Head vs. Discharge, Pump efficiency vs. Discharge
FEATURES
Closed loop water circulation
Compact & stand alone set up
Stainless Steel tanks and wetted parts
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electric supply 230 +/- 10VAC,50Hz,1 phase
Water supply Tap water connection ½” BSP
Distilled water @ 80 liters (optional)
Floor Area with drain facility
TECHNICAL DETAILS
Product & Code
Centrifugal Pump Test Rig & HM 01
Pump
Capacity 1 HP Speed 2800 RPM (max.), Head 12m(max.),
Make Kirloskar
Drive
HM 01 FS: Fix Speed with step cone pulley arrangement.
HM 01 VS : Variable Speed with Variable Speed drive
Supply Tank
Capacity 50 Ltrs. MOC SS
Measuring Tank
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Piping
GI / PVC
Stop Watch
Electronic
Pressure Measuring Instruments
Pressure Gauge: Bourdon type, Range:0-4 kg/cm2
Vacuum Gauge: Bourdon type, Range: 0-760mm of Hg
Compound Gauge: Bourdon type, Range:760mm of Hg to 2kg/ cm2
