The setup is designed to study the performance of Multi stage centrifugal pumps.

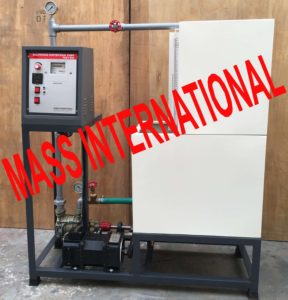

Set up consists of a multi stage centrifugal pump coupled with DC motor & drive, supply tank, measuring tank & pipe fittings for closed loop water circulation. There are 2 separate pumps connected to DC motor and drive and can be connected in series and parallel to stimulate different combinations. Pressure and Vacuum gauges are connected on delivery and suction side of each pump for the purpose of measurement.
The flow rate of water is measured using measuring tank and stop watch provided.
EXPERIMENTS
Centrifugal Pump Test Rig allows the students to understand the performance benefits of Centrifugal Pumps in parallel & series mode as under:
Speed Vs Discharge
Head Vs Discharge at various speeds.
Efficiency curves at various speed and heads
FEATURES
Closed loop water circulation
Compact & stand alone set up
Stainless Steel tanks and wetted parts
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electric supply Provide 230 +/- 10 VAC, 50 Hz,1ϕ
Water supply Tap water connections ½” BSP Distilled water @ 280 liters (optional)
Floor Area with drain facility
TECHNICAL DETAILS
Product & Code
Multi stage Centrifugal Pump Test Rig & HM 02
Pump (2 nos)
Capacity 1 HP Speed 2800 RPM (max.), Head 12m(max.),
Make Kirloskar
Drive
DC motor with DC drive along with non-contact type digital RPM indicator
Supply Tank
Capacity 50 Ltrs. MOC SS
Measuring Tank
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale
Piping
GI / PVC
Stop Watch
Electronic
Pressure Measuring Instruments
Pressure Gauge: Bourdon type, Range:0-4 kg/cm2
Vacuum Gauge: Bourdon type, Range: 0-760mm of Hg
Compound Gauge: Bourdon type, Range:760mm of Hg to 2kg/ cm2
