Hydraulic Ram is used for pump little quantity of water to high head from a large quantity of water available at low head. It works on a principle of water hammer stating that “when flowing water is suddenly stopped in a long pipe a pressure wave travels along the pipe creating an effect of water hammer”.

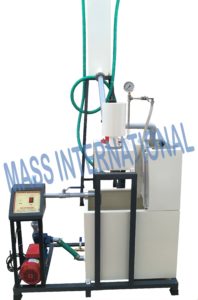

Set up consists of a pipe section fitted with a pulse valve and non-return valve, a supply reservoir on a stand which is connected to an overhead tank, an air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic.
The flow rate of useful and waste water is measured using measuring tank and stop watch provided. Pressure gauge is connected for the purpose of measurement.
EXPERIMENTS
To find out discharge of useful & waste water.
To find out the efficiency of the Hydraulic ram.
FEATURES
Closed loop water circulation
Compact & stand alone set up
Stainless Steel tanks and wetted parts
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electric supply 230 +/- 10 VAC, 50 Hz,1ϕ
Water supply Tap water connection ½” BSP Distilled water @ 250 liters (optional)
TECHNICAL DETAILS
Product & code
Hydraulic RAM & HM 08
RAM
Size 50 x 15mm, Supply Head 1 m approx, Delivery Head 10 m (Max.)
Air Vessel
Suitable capacity MOC SS
Delivery line
For RAM, Dia 50 mm length 1 m.
Pump
Capacity FHP, Crompton/Sharp / Hero make
Supply Tank
Capacity 70 Ltrs.
Overhead Tank
Capacity 40 Ltrs.
Measuring Tank
For useful water 1000ml (Measuring Cylinder)
For Waste water 20ltr SS tank fitted with Piezometer tube & scale
