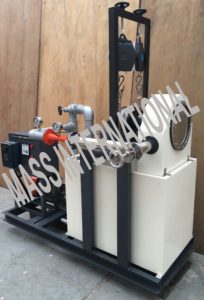

The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Row of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel the runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.
EXPERIMENTS
To study the operation of a Pelton Wheel Turbine
To determine the Output Power of Pelton Turbine
To determine the Turbine Efficiency
Features
Closed loop water circulation
Compact & stand alone set up
Stainless Steel tanks
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Water Supply and Drain
Electricity 15 kW, 440V AC, Three Phase
Floor Area 1.5 x 0.75 m
TECHNICAL DETAILS
Product & code
Pelton Wheel Turbine Test Rig & HM 09 (1 HP)
Output Power
1.25 HP
Discharge
350 LPM (Approx.)
Supply Head
25 m
Rope Brake Dynamometer
Dia 200 mm.
Sump Tank
Capacity 190 Ltrs
Water Circulation Centrifugal Pump
Capacity 5HP, Three Phase
Speed
2100 RPM (Approx.)
Impeller
Material Brass, Bucket type
Nozzle
Material Stainless Steel/ brass
Spear
Material Stainless Steel
Discharge Measurement
Venturimeter with pressure gauge.
Control Panel
Starter, Mains Indicator
Overall Dimensions (Weight & Vol.)
300 Kg, (LxBxH) (155 x 90 x 125CM)
Tanks will be made of Stainless Steel
Whole set-up is well designed and arranged in a good quality painted structure
