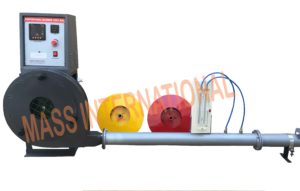

This equipment comprises of a FD Fan Centrifugal Blower coupled to a DC Motor. Three interchangeable impellers with forward, backward and radial vanes are provided with the test rig. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Blower. A Pitot Tube is provided in the delivery line of blower for static and dynamic pressure measurement.
EXPERIMENTS
To study the effect of forward curved, back curved and radial curved impeller
To find out the discharge, head and efficiency of the Centrifugal Blower
To plot the graph Efficiency Vs Discharge
To plot the graph Discharge Vs Head
Features
Compact & stand alone set up
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electricity I kW, 220V AC, 1 Phase
Floor Area 2.5 x 0.75 m.
TECHNICAL DETAILS
Product & code
Centrifugal blower test rig & HM 12
Blower
FD Fan Centrifugal, Forced Draft Type, Capacity 1HP
Drive
I HP DC motor with Thyristor controlled DC Drive for variable Speed
Pitot Tube
For Static & Dynamic Pressure measurement
Flow Measurement
With Differential Manometer.
Control Panel
RPM measurement: RPM Indicator with Proximity sensor.
Energy measurement: Electronic Energy meter
MCB: For overload protection.
Standard make On/Off Switch, Mains Indicator, etc.
The whole set-up is well designed and arranged in a good quality painted structure
