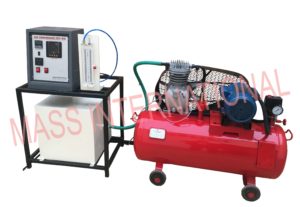

Single Stage Air Compressor Test Rig consists of a single stage reciprocating type air compressor driven by motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of this air tank to regulate the flow. Temperature of inlet and outlet of air and pressure at outlet can be measured by thermometer and pressure gauge.
EXPERIMENTS
To calculate the volumetric efficiency
To calculate isothermal HP
To calculate compression ratio
Features
Compact & stand alone set up
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electricity Supply: 2kW, 220VAC,Single Phase
Floor Area 1.5 x 0.75 m
Tachometer for R.P.M measurement
TECHNICAL DETAILS
Product & code
HM 14 A (1 HP)
HM 14 B (2 HP)
Compressor
Single Stage
Make
Toyo/Sony/ standard available
Drive ( Crompton Motor)
1 HP
2 HP
Manifold Tank
50 Ltr
80 Ltr
Air Flow Measurement
Orificemeter with Manometer
Air Tank (with safety valve, shut off valve) Capacity
100 Ltr
140 Ltr
Pressure Gauge
Bourdon type
Control Panel
RPM indicator with Proximity sensor, Energy meter, Digital Temp. Indicator: 0-199.9°C, with multi-channel switch, On/off switch, Mains Indicator etc.
The whole set-up is well designed and arranged in a good quality painted structure
