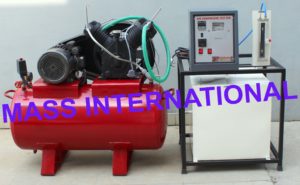

Two stage air compressor test rig consists of a double stage air compressor driven by Motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of the air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir and at intermediate stage can be measured by thermometers/ temperature sensors and gauges.
EXPERIMENTS
To calculate volumetric efficiency
To calculate isothermal HP
To calculate compression ratio
Features
Compact & stand alone set up
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Electricity 3 kW, 220V AC, Single Phase
Floor Area 1.5 x 0.75 m
TECHNICAL DETAILS
MODEL
HM 15 A (2 HP)
HM 15 B (3 HP)
Compressor
Double Stage, Double Cylinder
Drive ( Crompton Motor)
2 HP
3 HP
Manifold Tank
81 Ltr
110 Ltr
Air Flow Measurement
Orificemeter with Manometer
Air Tank (with safety valve, shut off valve) Capacity
145 Ltr
200 Ltr
Pressure Gauge
Bourdon type
Control Panel
RPM indicator with Proximity sensor, Energy meter, Digital Temp. Indicator: 0-199.9°C, with multi-channel switch, On/off switch, Mains Indicator etc.
The whole set-up is well designed and arranged in a good quality painted structure
