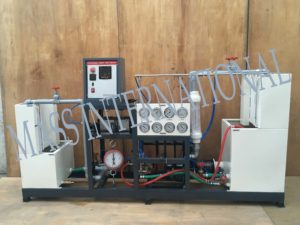

The unit consists of four different types of pumps namely- centrifugal, turbine, reciprocating and axial flow pump, a common storage tank, and measuring instruments. Each pump is driven by a motor dynamometer for measuring TRUE pump input power. Speed control is by an inverter. By manipulating flow control valves and a selector switch, each pump can be operated individually. The unit is floor standing with removable supports.
EXPERIMENTS
Flow rate vs head at various speeds.
Pump input, output, and true efficiency at various speeds.
Effect of pulse chamber for reciprocating pump
TECHNICAL DATA
Product & code
UNIVERSAL PUMP TEST RIG & HM-17
PUMPS
Centrifugal pump
With maximum flow rate 80 lpm and maximum head 18 m water at 2900 rpm.
Turbine pump
With maximum flow rate 35 lpm and maximum head 30 m water at 2900 rpm.
Reciprocating pump
With reduction gear, maximum flow rate 15 lpm at 300 rpm and maximum head 30 m water.
Accessories for the reciprocating pump: Dash pot pulse chambers, and pressure relief valve.
Axial flow pump
With 69 mm stainless steel impeller, guide vanes, shaft and casing, maximum flow rate 400 lpm and maximum differential head 1.5 m water at 2900 rpm.
MOTOR
Motor dynamometers for all pumps
Selector switch
For operations of each pump alternatively.
MEASURING INSTRUMENTS
Torques and speeds
Digital display
Flow rate
Water meter for centrifugal, turbine and reciprocating pumps.
Flow digital display for axial flow pump.
Pressures
Pressure gauges
CONTROL PANEL
Power supply
Pump selector switches, inverter and display, 220V 1Ph 60 Hz
The whole set-up is well designed and arranged in a good quality painted structure
