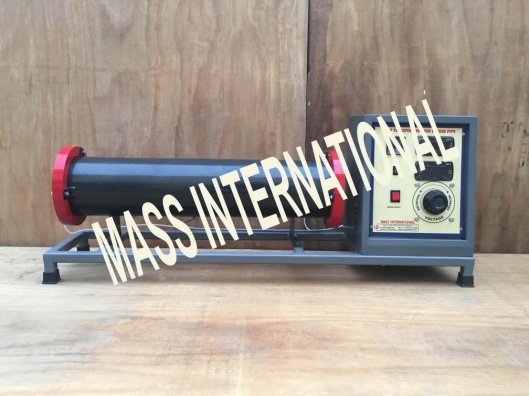

HT 02 HEAT TRANSFER THROUGH LAGGED PIPE

Description

The setup is designed and fabricated to study lagging phenomenon in case of pipes. It consists of three concentric pipes of small thickness as compared to diameter and are arranged concentrically, and closed with the help of two discs. Two different insulating materials fill the annuli between the cylinders compactly. Temperature Sensors are fitted to measure the temperature of pipe walls for radial outward heat flow measurement. Inside the inner pipe, a Nichrome wire heater is placed axially. Heat input to the heater is given through a variac and measured by Digital Voltmeter and Digital Ammeter. By varying the heat-input rates, wide range of experiments can be performed.

EXPERIMENTS

  • To estimate the actual rate of heat transfer through the composite cylinders from the measured interface temperature of the known value of thermal conductivity of the two insulating materials.
  • To determine the effective thermal conductivity of the composite cylinders
  • To determine the theoretical temperature profile within the composite cylinders



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED

    • Electricity Supply: 1Phase, 220 V AC, 2 Amp.
    • Table/floor space for set-up support

TECHNICAL DETAILS

Product & Code Heat Transfer Through Lagged Pipe & HT 02
Piping G.I Pipe Inner MOC, MS, dia. 5 cm Approx

G.I. pipe middle MOC, MS, dia. 10 cm Approx

G.I. Pipe outer MOC, MS, dia. 15 cm Approx

Length of Pipes 70 cm Approx.
Heater Nichrome Wire
Temperature Sensors RTD PT-100 type (6Nos.)
Control panel Digital Voltmeter: 0-300Volt
Digital Ammeter: 0-2Amp.
Variac: 0-230V, 2 A
Digital Temperature Indicator: 0-200.C, with multi-channel switch.

On/Off switch, Mains Indicator

Overall dimensions (L x B x H) 80 x 35 x 110

Painted rigid MS structure is provided to support all parts.
