HT 05
THERMAL CONDUCTIVITY OF METAL ROD
Description

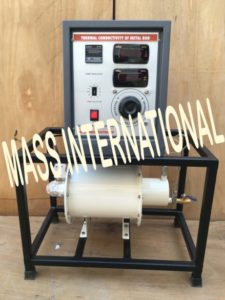

The experimental set up consists of metal bar, one end of which is heated by an electric heater while the other end of the bar projects inside the cooling water jacket. A cylindrical shell filled with the asbestos insulating powder surrounds the middle portion of the bar. The temperature of the bar is measured at different sections. Heat Input to the heater is given through variac and measured by Digital Voltmeter & Digital Ammeter. By varying the heat input rates, wide range of experiments can be performed. Water under constant head condition is circulated through the jacket and its flow rate and temperature rise is noted.
EXPERIMENTS
- To plot the temperature distribution along the length of Bar
- To determine the thermal conductivity of given bar at various temperatures
FEATURES
- Superb Painted structure
- Simple to operate & maintain
UTILITIES REQUIRED
- Water supply 3 lit/min (approx.)
- Drain
- Electricity Supply: 1 Phase, 220 V AC 2 Amp.
- Table for set-up support
| Product & Code |
Thermal Conductivity of Metal Rod & HT 05 |
| Metal Bar |
Material : Copper
Length : 450 mm
Dia : 25mm |
| Insulating Powder shell |
Length : 250 mm
Dia : 200 mm |
| Cooling Water Jacket |
Length : 75mm
Dia : 100mm |
| Heater |
Nichrome Wire |
| Water Flow measurement |
Measuring cylinder & Stopwatch. |
| Temperature Sensors |
RTD PT: 100 type (8 Nos.) |
| Control panel |
Digital Voltmeter: 0-300 Volt,
Digital Ammeter: 0-2 Amp,
Variac: 0-230 V, 2 A,
Digital Temp. Indicator : 0-199.9°C, with multi-channel switch,
On/off switch, Mains Indicator etc. |
| Overall Dimensions |
(L x B x H) 100 x 35 x 50 |
|
The whole set-up is mounted on a powder coated base plate.
|
