HT 08 HEAT TRANSFER FROM A PIN FIN

Description



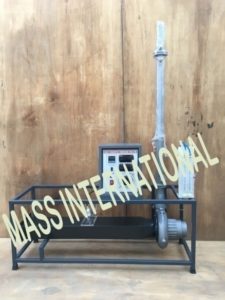

The setup is designed to study the heat transfer in a pin fin. It consists of pin type fin fitted in duct. A fan is provided on one side of duct to conduct experiments under forced draft conditions. Airflow rates can be varied with the help of damper provided in the duct. A heater heats one end of fin and heat flows to another end. Heat input to the heater is given through Variac. Digital Temperature Indicator measures temperature distribution along the fin.

EXPERIMENTS

  • To study temperature distribution along the length of fin in both Free & forced convection
  • Comparison of theoretical temperature distribution with experimentally obtained distribution



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED

  • Electricity Supply: 1ϕ, 220 VAC, 5 Amp.
  • Table for set-up support

TECHNICAL DETAILS

Product & Code Heat Transfer From A Pin Fin & HT 08
Fin Material Brass
Size 12.5 mm (approx.) 15 cm long (approx.)
Duct Made of MS
Fan Standard make
Heater Band type, Nichrome Wire
Temperature Sensors RTD PT-100 type (6 Nos.), 5 for pin and 1for duct temperature.
Control panel Dimmer stat: 0-230 V, 2 A,
Digital Temperature Indicator: 0-300°C, with multi-channel switch, On/Off switch, Mains Indicator etc
Overall Dimensions (L x B x H) 130 x 45 x 170

Painted rigid MS structure is provided to support all parts.
