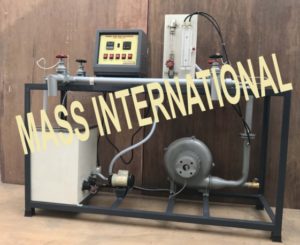

HT 18 FINNED TUBE HEAT EXCHANGER (Water to Water / Water to Air)

Description



Heat exchangers are widely used in various industries. Finned tube Heat Exchanger is a concentric tube type heat exchanger. The fins are attached on the circumference of the outer tube to increase the heat transfer area. Hot water flows through inner tube and cold fluid flows in the annulus The flow rate of hot/cold fluid is measured with the help of two rota-meters. The flow rate of cold fluid (air) is measured by pitot tube/orifice connected to “U” tube manometer in case of water to air system.

Inlet and outlet temperatures of fluids (Hot/cold) are measured with the help of RTD Pt-100 sensors fitted at inlet and outlet points of water flow and displayed on multi-channel digital temperature indicator. A water bath fitted with heaters of suitable capacity is also installed to provide water at different temperature for conducting experiment. A magnetic drive pump is used to circulate hot water from water bath. The Temperature of water bath is controlled by a digital Temperature Controller cum indicator.

EXPERIMENTS

  • To calculate the LMTD
  • To find Heat transfer rate
  • To find out overall heat transfer co-efficient.



FEATURES

  • Rugged structure and superbly painted/finished
  • Simple to operate & maintain



UTILITIES Required

  • Cold Water supply @ 10 lit/min (approx.)
  • Electricity Supply: 1 Phase, 220 VAC, 5 kW.
  • Floor area of 1.75m x 1m
  • Drain

TECHNICAL DETAILS

Product Finned Tube Heat Exchanger
Product Code/ System HT 18A/Water to Water HT 18B/ Water to Air
Inner Tube       Dia 16 mm, Length 1 m. Material Copper
Longitudinal Fins         Width 12mm, Length 1m, 4 Nos. Material Copper
Outer tube        Dia. 45 mm. Length 1 m. Material G.I.
Cold fluid circulation Tap water from lab Air stream through  FHP blower fitted with setup
Cold fluid Flow Measurement Rotameter, Pitot tube/Orifice connected to “U” tube manometer
Hot Water Circulation Magnetic Pump made of Polypropylene to circulate Hot Water. Maximum working temperature is 85°C.
Hot Water Tank Made of SS Double Wall, insulated with ceramic wool, suitable capacity
Hot Water Flow Measurement Rotameter
Hot water tank Heaters 2 kW Nichrome wire heater (2 Nos.)
Temperature Sensors RTD PT-100 type 6 Nos.
Control panel   Digital Temp. Controller: 0-199.9°C (For Hot Water Tank),

with multi-channel switch, On/Off switch, Mains Indicator etc
Overall Dimensions (L x B x H)
Painted rigid MS structure is provided to support all parts
Opt: One extra heat exchanger with plain tube for comparison of heat exchanger with & without fins.
