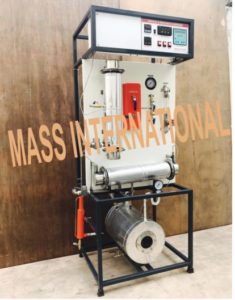

HT 19 VERTICAL & HORIZONTAL CONDENSER

Description



Shell & Tube type condensers are widely used in various industries. The present set-up offers us a comparative study of Vertical & Horizontal condenser, which can be operated simultaneously. Condensers are fabricated Stainless steel shell, inside which tubes are fitted. Cold fluid enters from one end of the tubes and come out of the other. Hot fluid that is steam / hot water is admitted at the one end of shell passes over the cold-water tubes. Valves are provided to control the flow rates of cold fluids.

Flow rate of water is measured by using Rotameter, measuring cylinder and stop watch. Shell is fitted with steam traps from where condensate is collected in measuring cylinder. Temperature of inlet and outlet of both hot & cold fluids are measured by temperature sensors.

EXPERIMENTS

  • To determine the overall Heat Transfer Co-efficient experimentally & compare it with the value obtained from standard correlation.
  • To make a comparative study of Vertical & Horizontal Condenser



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED

  • Water supply 20 lit/min (approx.) and drain.
  • Electricity Supply: 1Phase, 220 V AC, 4 kW.
  • Floor area of 1.5m x 1m

TECHNICAL DETAILS

Product Vertical and Horizontal Condenser
Product Code/       System HT 17A/ Steam to Water HT 17B/ Water to Water
Condensers 2 Nos. (Vertical & Horizontal) Insulated by Ceramic wool and cladding by aluminum foil.
Shell Material stainless steel, Dia 100mm, Length 500 mm (Approx)
Tubes OD 12.7 mm, Length 500mm
Condensate Measurement Measuring Cylinder & Stopwatch —–
Flow Measurement Rotameter, measuring cylinder & Stop Watch
Cold Water circulation Using tap water from lab
Hot Fluid Generation Steam Generator Made of stainless steel fitted with level gauge, pressure gauge, safety valve, drain and insulated with ceramic wool & cladding with Aluminium foil. Hot Water Tank Made of Stainless steel, insulated with ceramic wool. With Magnetic Pump made of Polypropylene to circulate Hot Water. Max working temperature is 85°C.
Heaters 2 kW Nichrome wire heater
Temperature Sensors  RTD PT-100 type 9 Nos.
Control panel Digital Temperature Controller: 0-199.9°C (For Steam Generator/hot water bath) Digital Temperature Indicator: 0-199.9°C, with multi- channel switch, On/Off switch, Mains Indicator etc
Overall Dimensions (L x B x H)
Painted rigid MS structure is provided to support all parts
