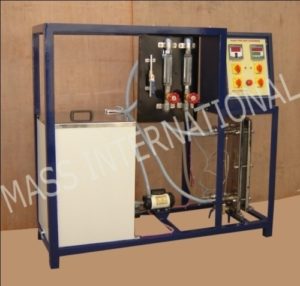

HT 17 PLATE TYPE HEAT EXCHANGER

Description



Plate type heat exchanger consists of frame in which independent metal plates are clamped between a head and follower. The plates are sealed at their outer edges and around the ports by gaskets, which are so arranged that the liquid and the heating/cooling media are directed alternately into passages formed between the plates.

The hot fluid enters at the top on the right side of the fixed flows downwards through alternate channels between the plates. The Hot fluid leaves the exchanger through a connection at the bottom of the fixed end cover. The cold fluid enters at the bottom of the left side of the fixed end cover. The cold fluid flows in counter current flow through alternate channels between the plates and leaves the exchanger at the top on the left side of the fixed end cover.

EXPERIMENTS

To calculate: –

(i) LMTD

(ii) Heat transfer rate

(iii) Overall Heat Transfer Co-efficient



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED

  • Electric Supply: 1 Phase, 220 V AC, 5 KW.
  • Floor area of 1.75 m x 1m.
  • Water Supply at constant head (10 LPM Approx.)

TECHNICAL DETAILS

Product & Code Plate Type Heat Exchanger & Ht 17
System Water to Water
Plates Material Stainless Steel
Frame Rigid MS Structure
Water Flow Measurement Using Rota meters (2Nos.) one each for cold & hot fluid
Hot Water Tank Made of Stainless steel, Double Wall, Insulated with Ceramic wool
Hot Water Circulation Magnetic Pump
Heater Nichrome wire heater
Control Panel Digital Temp. Controller: 0-199.9 degree C, (For Hot Water tank)

Digital Temp. Indicator: 0-199.9 degree C, with multi-channel switch

Temperature sensors RTD PT-100 type
Overall Dimensions (L x B x H) 115 x 45 x 110)
With Standard make On/Off switch, Mains Indicator etc.
Painted rigid MS structure is provided to support all parts
