HT 21 UNSTEADY STATE HEAT TRANSFER UNIT

Description

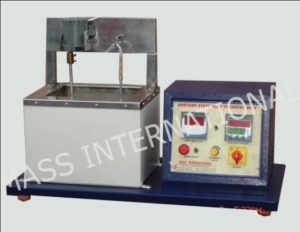

The apparatus consists of a small test cylinder. The cylinder is heated by a constant temperature water bath, till steady state is reached. During heating, temperature of the cylinder is function of time and hence, heating of cylinder is unsteady state heat transfer. The temperature of cylinder is measured with the help of temperature sensor inserted in the center. The hot water bath is provided with a heater and is controlled by digital temperature controller. An agitator is also provided to maintain the constant temperature.

EXPERIMENTS

  • To calculate the Biot number, Fourier number and to calculate the heat transfer coefficient
  • To plot Heisler Chart for the given sample of cylindrical solid



FEATURES

  • Compact & stand alone set up
  • Superb Painted structure
  • Simple to operate & maintain



UTILITIES REQUIRED

  • Electricity Supply: 1 Phase, 220 V AC, I kw
  • Bench area of 1.5m x 1.5m

TECHNICAL DETAILS

Product & Code Unsteady State Heat Transfer Unit & HT 21
Water Bath Material – stainless steel Capacity-8 lit. (Approx.)
Stirrer for Bath Stainless Steel Impeller with shaft coupled to a FHP motor.
Heater Nichrome wire heater
Test Cylinder 2 nos. stainless steel and brass
Temperature Sensors RTD PT-100 type
Control panel Digital Temperature Controller: 0-199.9°C (For Water Bath)
Digital Temperature Indicator: 0-199.9°C,
On/Off switch, Mains Indicator etc
The whole set-up is well designed and arranged on auto finish painted/powder coated structure.
