Two phase heat transfer is a mode of heat transfer that occurs because of vaporization. Vaporization is a process in which a substance is changed from liquid to vapour state. Pool boiling takes place when a liquid is confined in a container and a heater is submerged in the liquid

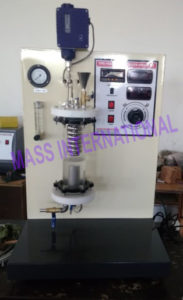

The main apparatus is fitted on MS tube frame consisting of a glass column with a sample holding sump with a heater and drain valve at the bottom and a helical condenser, with water inlet and outlet and a feed valve at the top and the unit is made leak proof with necessary flange connections.
EXPERIMENTS
To plot graph of heat flux & temperature difference between metal & liquid.
To calculate amount of heat taken away by water from condensing vapor.
FEATURES
Superb Painted structure
Simple to operate & maintain
UTILITIES REQUIRED
Water supply 5 lit/min (approx.) @ 0.5 BAR at constant head condition.
Floor Drain required.
Electricity Supply: 230 VAC, 50 Hz, Single Phase, 1 kW with neutral and earth connection. Earth voltage less than 2.5 Volts.
Floor area5 m x 1m
TECHNICAL DETAILS
Product & Code
TWO PHASE HEAT TRANSFER UNIT & HT 28
Glass Column
(Borosil Glass)
Dia 75 mm, Length 300 mm
Fitted with sealed caps (2 No.) (MOC PTFE/Nylon)
Heater
Nichrome wire Rod heater, Capacity 500 Watts with Thyristor Control (Auto/Manual mode)
Cooling Coil
Material Stainless steel 304, Helical Type
Pressure Measurement
Pressure gauge- Dial 65 mm, Capacity 2kg/cm2
Pressure transmitter
Flow Measurement
Rotameter
Flow transmitter
Safety Switch
Automatic Pressure cut off switch for heater
Temperature Sensors
RTD PT-100 type 5 Nos., with transmitter (RTD/4-20 mA output)
Control panel
With standard make On/Off switch, Mains Indicator etc
