HT 31D JACKETED VESSEL WITH STIRRER & COIL

Description

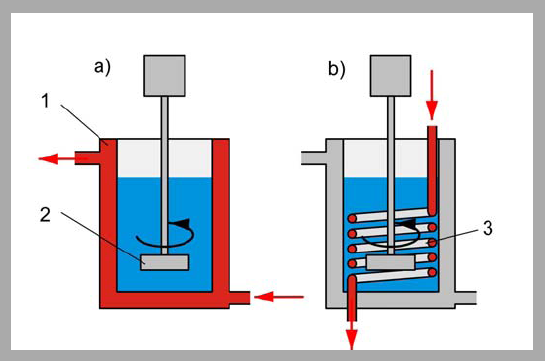

The jacketed heat exchanger consists of a tank surrounded by a jacket. The tank is fitted with a coiled tube. In heating mode with jacket the hot water flows through the jacket and transfers a part of the thermal energy to the cold water in the tank. In heating mode with coiled tube the hot water flows through the coil and heats the cold water in the tank. A stirring machine can be used in all modes. Valves on the supply unit are used to adjust the flow rate of hot water. The temperature sensors for measuring the inlet and outlet temperature are located at the supply connections on the service unit. An additional temperature sensor measures the temperature in the tank.

During experiments, time curves are plotted and displayed graphically. Additionally, the measured values can be recorded and processed using data acquisition software.

The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments

Experiment

In conjunction with supply unit

  • Function and behaviour during operation of a jacketed heat exchanger
  • Plotting time curves

* Heating mode with jacket

* Heating mode with coiled tube

  • Influence of a stirring machine
  • Comparison with other heat exchanger types



FEATURES

  • Simple to operate & maintain
  • Parallel flow and counter flow operation possible
  • Transparent shell, visible tube bundle
  • Heating using jacket or coiled tube
  • Stirring machine can be used in all modes
  • Visible working area due to transparent cover

TECHNICAL DETAILS

Product Jacketed Vessel with Stirrer & Coil
Product Code Ht 24D
Tank nominal value: approx. 1200mL
Stirring machine speed: 0…280 rpm
Heat transfer area (approx.) jacket (stainless steel): approx. 500cm2

coil (stainless steel): approx. 500cm2
Measuring range temperature: 0…100°C
Dimensions and Weight l x w x h: 500 x 300 x 400 mm, Weight: approx. 12 kg
