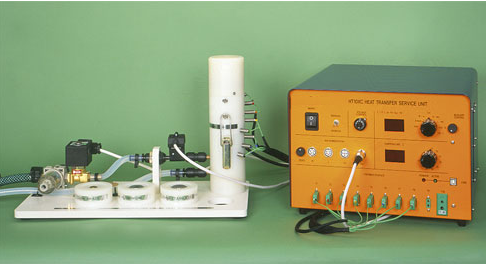

HT 51 HEAT TRANSFER SERVICE UNIT

Description

The present set-up is designed to accommodate different types of small-scale accessories, one at a time (detailed further), most commonly used in industries. These Heat Transfer accessories demonstrate the three basic modes of heat transfer i.e. conduction, convection and radiation. These different types of heat transfer accessories can alternatively be installed on the same set-up. This & common bench provides necessary electrical supply and measurement facility for determining and comparison of the different heat transfer characteristics.

EXPERIMENTS

The following heat transfer experiments are available for use under manual control:

HT 25A: Linear Heat Conduction

HT 25B: Radial Heat Conduction

HT 25C: Laws of Radiant Heat Transfer and Radiant Heat Exchange

HT 25D: Combined Convection and Radiation

HT 25E: Extended Surface Heat Transfer

HT 25F: Radiation Errors in Temperature Measurement

HT 25G: Unsteady State Heat Transfer

HT 25H: Thermo-Electric Heat Pump

HT 25I:   Free & Forced Convection

HT 25J: Conductivity of Liquids and Gases

FEATURES

  • Common bench top unit to accommodate seven heat transfer accessories, alternatively

UTILITIES REQUIRED

  • Water Supply: at 2 LPM (maximum) at constant head
  • Laboratory Drain
  • Electricity Supply: 220VAC, Single Phase, 50 Hz, 3 kW (maximum)

TECHNICAL DETAILS

Product & Code Heat Transfer Service Unit & HT 51
Service Unit It is a benchtop service unit designed to interface to a range of heat transfer accessories
  Provides a variable, stabilised 0-24V DC supply to the heater of the heat transfer accessory, with a current capability of 9 amp
Drive signal Provided for a proportioning solenoid valve used for flow control
Control signal Provided to a variable speed blower used for generating airflow
K-type thermocouples 10 temperature inputs and conditioning circuits:
– 9 off, 0-133°C, resolution <0.1°C
– 1 off, 0-500°C, resolution <0.15°C
Instrumentation Instrumentation inputs for heater voltage, heater current, air flow, water flow, radiation and light meter
Integral USB interface, and educational software for all accessories
Output Outputs can be controlled manually from the front panel, or controlled by the software from a user supplied PC
Easy interfacing to 3rd party software eg LabView, MatLab
Watchdog circuit Watchdog circuit for operator and equipment safety in case of computer or interface failure when being controlled remotely(e.g. over a network or the internet using user written software)
A comprehensive instruction manual describing how to carry out the laboratory teaching exercises in non-steady state heat transfer and their analysis as well as assembly, installation and commissioning is included
