DESCRIPTION

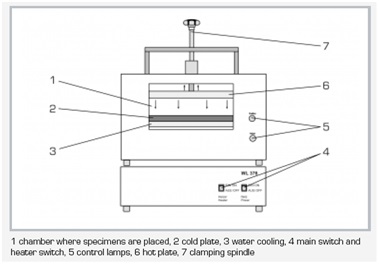

This experimental unit enables experiments to be performed on steady-state heat conduction in non-metallic materials such as polystyrene, PMMA, cork or plaster. Specimen sheets are placed between a heater plate and a water-cooled plate. A clamping device ensures that the clamping pressure and thermal contact are reproducible.

A special sensor measures the heat flux. Electronic controllers keep the temperatures of the heater plate and cooling plate constant within close limits.

Experiments

• Determination of the thermal conductivity λ of different materials
• Determination of the thermal resistance
• Thermal conductivity λ of several specimens connected in series (up to a thickness of 50mm)

Technical specifications

Electric heater mat

• Power: 500W
• Temperature: 200°C, limited to 80°C

Specimens

• LxW: 300x300mm
• thickness: up to 50mm
• material: Armaflex, grey cardboard, PMMA, polystyrene, PS, POM, cork, plaster

Measuring ranges

• temperature: 3x 0…100°C, 2x 0…200°C
• heat flux density: 0…1533W/m²

230V, 50Hz, 1 phase

Dimensions and Weight:

LxWxH: 710x440x550mm (experimental unit)

LxWxH: 710x440x200mm (control unit)

Weight: approx. 90kg (total)

UTILITIES REQUIRED

• Water connection, drain
• PC with Windows

SCOPE OF DELIVERY

• 1 experimental unit
• 1 control unit
• 8 specimens
• 2 hoses
• 1 manual
