IM 119 NON LINEAR LEVEL CONTROL

DESCRIPTION

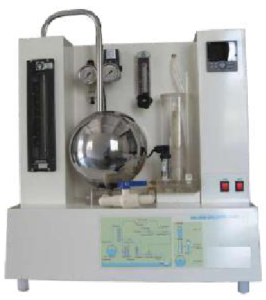

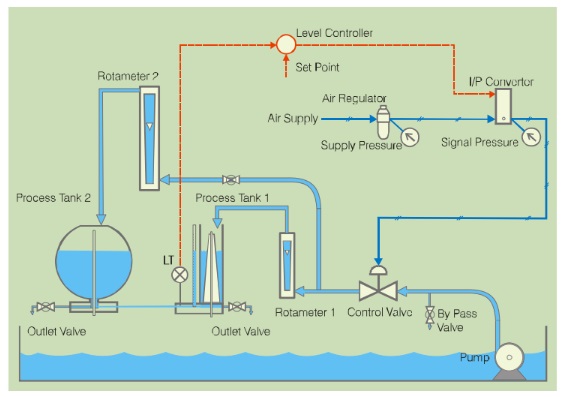

Non linear level control is designed for understanding the principles of non linear level control. The process setup consists of SS spherical tank, and conical process tanks and supply water tank with pump for water circulation. A pneumatic control valve with I/P convertor manipulates the water flow in to the process tank. These units along with necessary piping are fitted on support housing designed for tabletop mounting. Level transmitter is used for sensing level in the process tanks.

The product interfaces with computer through NI USB DAQ card and controlled by specially developed control software.



FEATURES

  • Spherical tank level control
  • Conical tank level control
  • Non linear control strategies
  • ON-Off & PID operation
  • Open / closed loop tuning
  • Stability analysis



RANGE OF EXPERIMENTS

  • Study of open loop (Manual control)
  • Study of on/off controller
  • Study of proportional controller
  • Study of prop. integral controller
  • Study of prop. derivative controller
  • Study of PID controller
  • Tuning of controller (Open loop method)
  • Tuning of controller (Closed loop method)
  • Study of stability of the system (Bode plot)



Utilities Required

Electric supply: 230 +/- 10 VAC, 50 Hz, 1 phase

Water supply: Distilled water @10 liters

Computer With standard configuration

Air Supply Clean, oil and moisture free air, Pressure 2 Bar, consumption 50 LPH

SOFTWARE

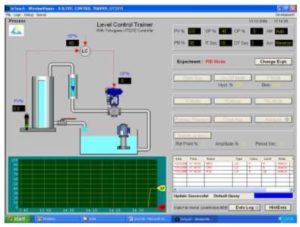

Specially developed Labview based software is provided which helps in learning the principles of control. Different experiments can easily be selected and studied. The software is easy to use, flexible & with features like Data access, trend plots, Data logging, Printing, Data export.

TECHNICAL SPECIFICATIONS

Product & Code NON LINEAR LEVEL CONTROL & IM 119
Computer interface NI USB-6001, 14 bit, 20KS/S Multifunction I/O and NI-DAQMX. Analog input 4, Analog output 2
Communication USB port
Level transmitter Type Capacitance, two wire, Range 0–250 mm, Output 4–20 mA , Make Yokogawa
I/P converter Input 4-20 mA, Output 3-15 psig, Make Control air
Control valve Type Pneumatic, Size 1/4", Input 3–15 psig, Air to close, Char. Linear, Make Pneucon
Rotameter 16-160 LPH and 40-400 LPH Make eureka
Pump Fractional horse power, Type submersible
Process tank SS Spherical, Transparent acrylic cylindrical with cylindrical to conical conversion kit.
Supply tank SS304
Air filter regulator Range 0-2.5 kg/cm2, Make Airmatic
Pressure gauge Range 0-2.5 kg/cm2 (1No), Range 0-7 kg/cm2
Overall Dimensions 550Wx475Dx520H mm
